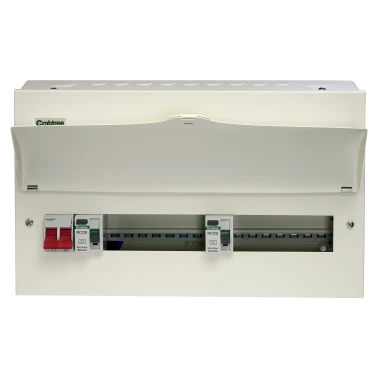

14 Way Dual RCD Consumer Unit 100A Main Switch, 80A 30mA RCD +7, 80A 30mA RCD +7
£370.00
Part Number: 2501266786 MPN: 514/2837837B Product Type: Rcd Protected Boards
Description
Part Number: 2501266786 MPN: 514/2837837B Product Type: Rcd Protected Boards
Product Details
- Full metal enclosure
- Plug in insulated busbar assembly
- 7+7W Dual RCD
- 2x 80A 30mA type A RCCBs
Technical Specifications
Small distribution board equipped |
|
| Protection | Miniature circuit breaker/RCBO |
|---|---|
| Mounting method | Surface mounted |
| Housing material | Steel |
| Degree of protection (IP rating) | IP2XC |
| Height | 261 mm |
| Depth | 121 mm |
| Width | 438 mm |
| Number of phases | 1 |
| Width in number of modular spacings | 20 |
|---|---|
| Number of poles main switch | 2 |
| Total number of groups | 2 |
| Main switch rated current | 100 A |
| Lockable | Yes |
| Extension possible | No |
| With transparent cover | No |
| Over voltage-/surge protection | No |
