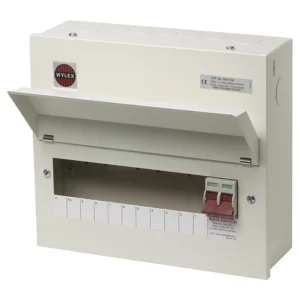

13 Way Consumer Unit Main Switch 100A, Fixed Configuration, with SPD
£241.05
Part Number: 2501421666 MPN: NM1306LS Product Type: Populated Boards
Description
Part Number: 2501421666 MPN: NM1306LS Product Type: Populated Boards
Product Details
- 13W Main switch plus SPD consumer unit
- Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly
- Fitted with the Wylex miniature type 2 SPD, NMT2SPD3W/1
- Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs
- Constructed from a full metal enclosure with curved visor and temporary locking facility
Technical Specifications
Small distribution board equipped |
|
| Mounting method | Surface mounted |
|---|---|
| Protection | Miniature circuit breaker/RCBO |
| Housing material | Steel |
| Degree of protection (IP rating) | IP2XC |
| Width | 343 mm |
| Height | 261 mm |
| Depth | 121 mm |
| Number of phases | 1 |
| Width in number of modular spacings | 16 |
|---|---|
| Number of poles main switch | 2 |
| Total number of groups | 1 |
| Main switch rated current | 100 A |
| Lockable | Yes |
| Extension possible | No |
| With transparent cover | No |
| Over voltage-/surge protection | Yes |
