15 Way Dual RCD Consumer Unit 100A Main Switch, 63A 30mA RCDs, Flexible Configuration with 10 MCBs
£145.17
Part Number: 2501129521 MPN: LSDR15BUB10 Product Type: Rcd Protected Boards
Description
Part Number: 2501129521 MPN: LSDR15BUB10 Product Type: Rcd Protected Boards
Product Details

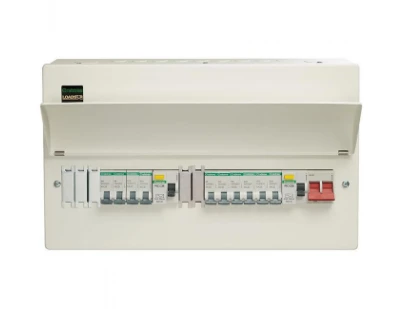

Crabtree LSDR15BUB10 Loadstar 18th Edition All Metal 15 Way Pre-Populated Twin 63mA RCD High Integrity Flexible Consumer Unit With 5x6A, 1x16A, 1x20A, 3x32A MCBs + 5 Blanks
- 15 Way Flexible Dual RCD Consumer Unit
- 100A Main isolator
- 63A 30mA Type AC RCDs
- Curved Visor
- Populated with 10 Type B Miniature Circuit Breakers (5x6A, 1x16A, 1x20A, 3x32A) and 5 blanks
Technical Specifications
Small distribution board equipped |
|
| Protection | Miniature circuit breaker/RCBO |
|---|---|
| Mounting method | Surface mounted |
| Housing material | Steel |
| Degree of protection (IP rating) | IP2XC |
| Number of phases | 1 |
| Width in number of modular spacings | 21 |
| Main switch rated current | 100 A |
| Number of poles main switch | 2 |
| Height | 261 mm |
|---|---|
| Depth | 120 mm |
| Width | 438 mm |
| Total number of groups | 2 |
| Over voltage-/surge protection | No |
| Lockable | No |
| Extension possible | No |
| With transparent cover | No |
