19 Way Consumer Unit Main Switch 100A

Name: 19 Way Consumer Unit Main Switch 100A
SKU: 4513
Price: 127.25 GBP
Availability: InStock

£127.25

Part Number: 2501076143 MPN: NM1906L Product Type: Populated Boards

Categories: Domestic consumer unit, Populated boards, Switchgear and Distribution

Description

Part Number: 2501076143 MPN: NM1906L Product Type: Populated Boards

Product Details

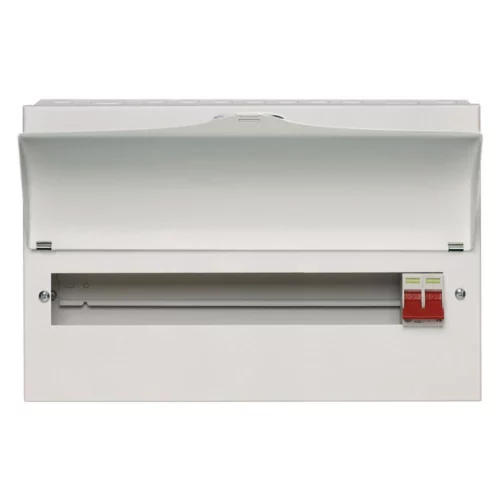

Wylex NM All Metal Consumer Unit with 100A main switch. It comes as compact enclosure with low smoke and fume painted features. This consumer unit comes with raised and removable DIN rail/busbar assembly.

19W Main switch only consumer unit
Includes a 100A main switch with twin line and neutral supply terminals and a 100A fixed busbar assembly
Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs
Accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1
Constructed from a full metal enclosure with curved visor and temporary locking facility
UKAS certified to BS EN 61439-3
Top hinged self closing, stay shut door & metal hinges
Factory fitted incoming devices for reduced installation time
