Description
Part Number: 2500329215 MPN: EAM10 Product Type: Distribution Boards Single Phase
Product Details

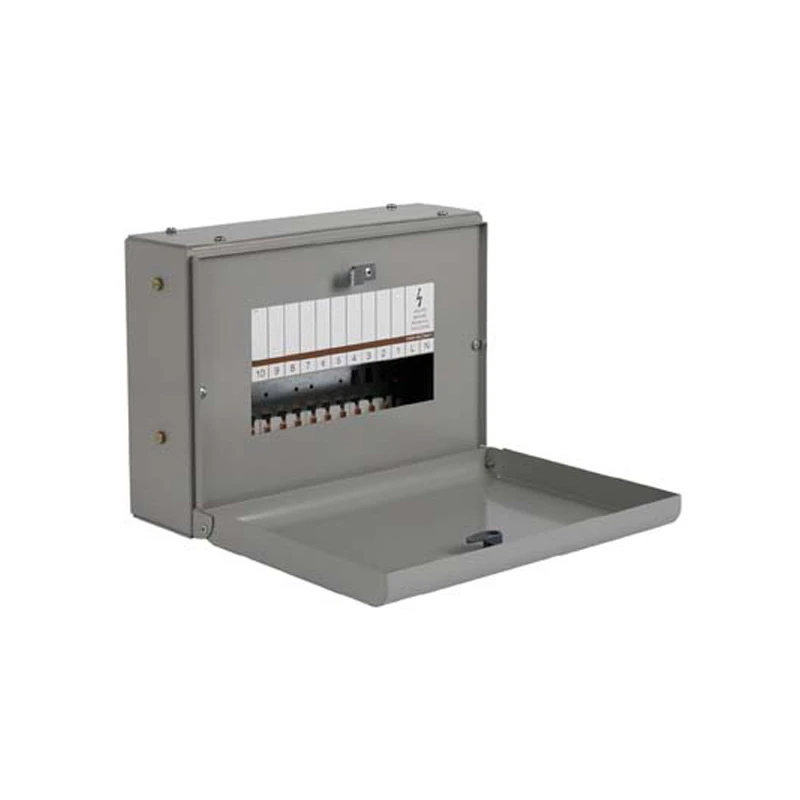

MEM A distribution board; 10-way SPN
- Interlinking form for improved positional security
- Removable main busbar for flexible installation
- Fully shrouded neutral busbar for increased safety
- Anti-microbial certified
Technical Specifications
Small distribution board | |
| Internal depth | 95 mm |
|---|---|
| Signal passing door | No |
| Neutral terminal block | Yes |
| Earthing terminal block | Yes |
| With lock | No |
| Transparent cover/door | No |
| With DIN-rail | Yes |
| Extension possible | No |
| EMC-version | Yes |
| With mounting plate | No |
| Width in number of modular spacings | 12 |
| Recess width | 356 mm |
| Recess height | 150 mm |
| Mounting method | Surface mounted |
|---|---|
| Recess depth | 264 mm |
| RAL number | 7004 |
| Number of rows | 1 |
| Depth | 264 mm |
| Height | 150 mm |
| Width | 356 mm |
| Colour | Grey |
| Housing material | Steel |
| Cover model | Closed |
| Type of covering | Door |
| Degree of protection (IP rating) | IP3X |
