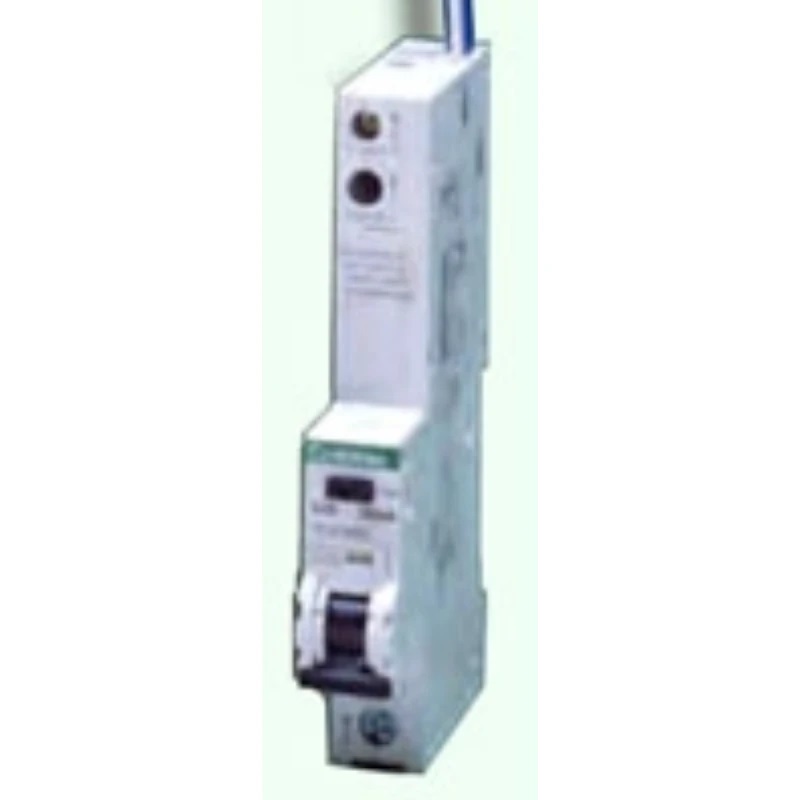

C40 30mA 16kA 1P+N Type A RCBO (1 Module Width)
£121.06
Part Number: 2500477664 MPN: 701C/403 Product Type: Residual Current Devices
Description
Part Number: 2500477664 MPN: 701C/403 Product Type: Residual Current Devices
Product Details
Crabtree Miniature Residual Current Circuit Breaker with overcurrent protection (RCBO) , suitable for Polestar compact distribution boards
- Single Module 16kA RCBO
- 40A C curve (MCB), 30mA Type A (RCD)
- Neutral & Earth Tail lengths = 600mm
- Suitable for use in Crabtree Polestar Compact Distribution Boards
- 40A rated
- single pole
- 18mm wide
- Terminal capacity up to 16mm cable
- Tail length 600mm
Technical Specifications
Earth leakage circuit breaker/RCBO |
|
| Rated voltage | 230 V |
|---|---|
| Concurrently switching N-neutral | No |
| Flush-mounted installation | No |
| With interlocking device | No |
| Anti-nuisance tripping version | No |
| Connectable conductor cross section multi-wired | 0.75 – 16 mm² |
| Connectable conductor cross section solid-core | 0.75 – 16 mm² |
| Ambient temperature during operating | -5 – 45 °C |
| Width in number of modular spacings | 1 |
| Current limiting class | 3 |
| Rated impulse-withstand voltage (Uimp) | 4 kV |
| Number of protected poles | 1 |
| Frequency | 50 Hz |
|---|---|
| Rated insulation voltage Ui | 400 V |
| Over voltage category | 3 |
| Number of poles (total) | 1 |
| Rated short-circuit breaking capacity according to EN 61009 | 16 kA |
| Rated fault current | 0.03 A |
| Rated current | 40 A |
| Voltage type | AC |
| Disconnection characteristic | Undelayed |
| Leakage current type | A |
| Degree of protection (IP rating) | IP20 |
