100A 30mA 4P RCCB
£197.44
Part Number: 2500082924 MPN: 18R100/30/4 Product Type: Residual Current Devices
Description
Part Number: 2500082924 MPN: 18R100/30/4 Product Type: Residual Current Devices
Product Details

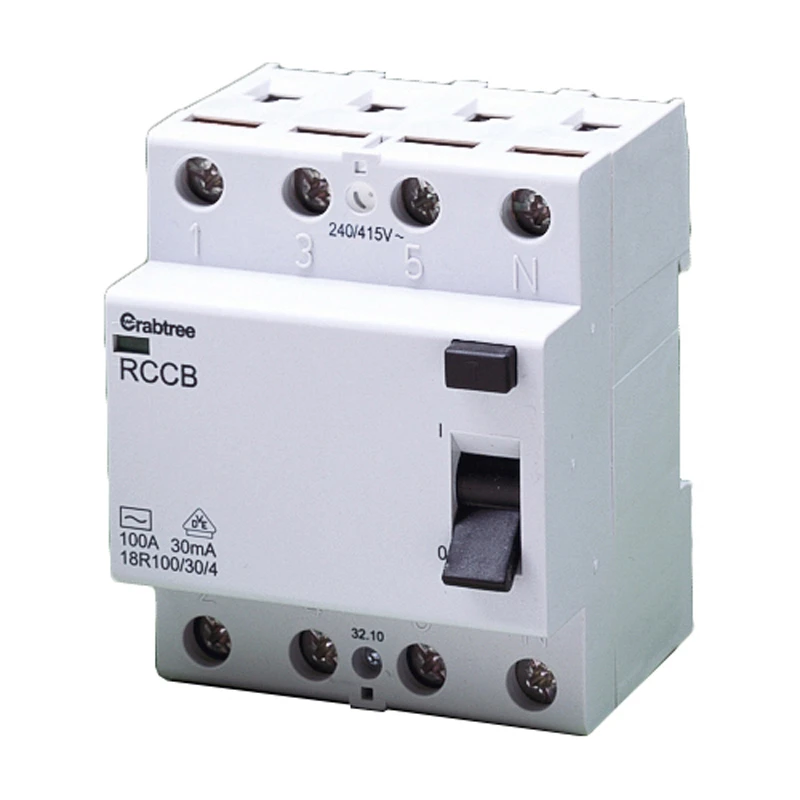

Crabtree Loadstar RCCB is a 4-pole, 30mA sensitivity RCD, suitable for Loadstar commercial/industrial distribution boards. It has a maximum incoming cable capacity of 35mm².
- Four Pole RCCB, 100A 30mA, Type AC, For use with Crabtree Loadstar distribution boards, For incoming options can be used with 18LK125 connection kit
- EN61008 and IEC 61008 standards
- Type AC RCD class
Technical Specifications
Residual current circuit breaker (RCCB) |
|
| Leakage current type | Plastic surfaces |
|---|---|
| Mounting method | Symmetric |
| Number of poles | 4 |
| Rated voltage | 415 V |
| Rated current | 100 A |
| Short-circuit breaking capacity (Icw) | 10 kA |
|---|---|
| Width in number of modular spacings | 4 |
| With interlocking device | No |
| Short-time delayed tripping | No |
| Additional equipment possible | Yes |
