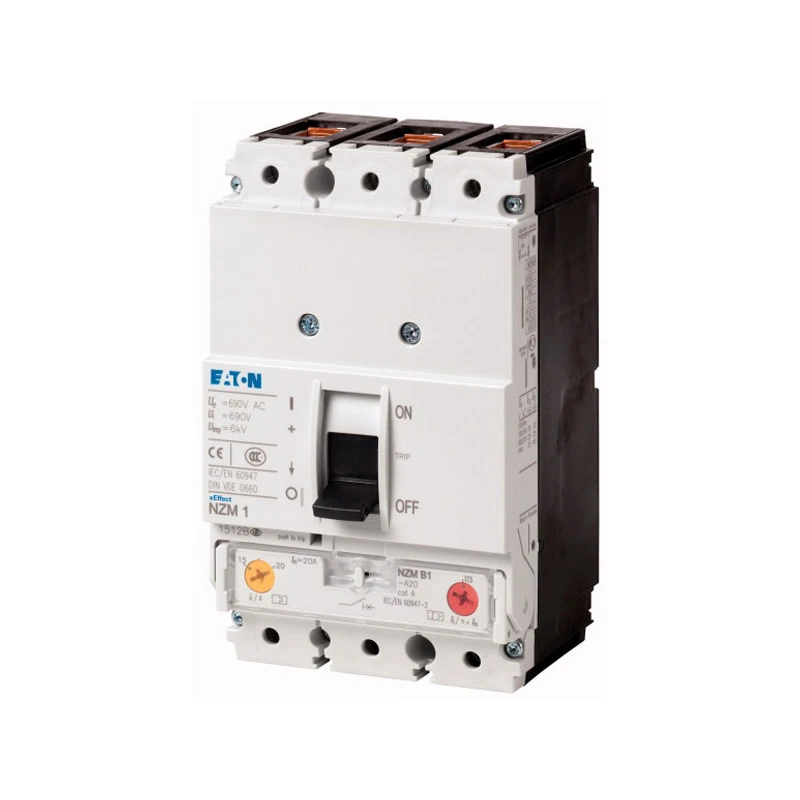

MCCB Triple Pole Outgoing NZM1 Frame 100A 25kA

£207.89

Part Number: 2500461580       MPN: 259079      Product Type: Moulded Case Circuit Breakers

Categories: , ,

Description

Part Number: 2500461580       MPN: 259079      Product Type: Moulded Case Circuit Breakers

Product Details

Outgoing Device Circuit-Breaker, with box terminal, 70mm² maximum cable capacity and 0.8 to 1 x In thermal trip adjustment. This circuit-breaker can be used universally from the smallest of service distribution boards, to machine controls or motor starter combinations, up to large energy distribution systems with a short-circuit breaking capacity.

  • Breaking Capacity: 25kA
  • Current Rating: 100A
  • Height: 145mm
  • Range: NZM
  • Width: 90mm
  • Depth: 84.5mm

Technical Specifications

Moulded case circuit breaker (MCCB)
Number of auxiliary contacts as change-over contact 0
Complete device with protection unit Yes
DIN rail (top hat rail) mounting optional Yes
Motor drive optional No
Integrated earth fault protection No
Suitable for DIN rail (top hat rail) mounting No
Motor drive integrated No
Switched-off indicator available No
With integrated under voltage release No
Adjustment range undelayed short-circuit release 600 – 1000 A
Adjustment range short-term delayed short-circuit release 0 – 0 A
Rated voltage 440 – 440 V



Position of connection for main current circuit Front
Overload release current setting 80 – 100 A
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 25 kA
Number of poles 3
Rated permanent current Iu 200 A
Number of auxiliary contacts as normally closed contact 0
Type of control element Rocker lever
Number of auxiliary contacts as normally open contact 0
Device construction Built-in device fixed built-in technique
Type of electrical connection of main circuit Frame clamp
Degree of protection (IP rating) IP20
