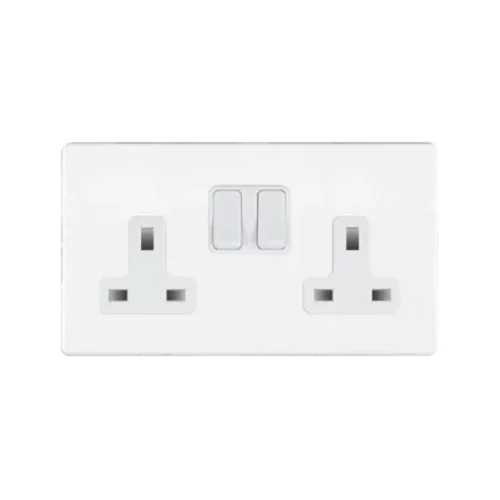

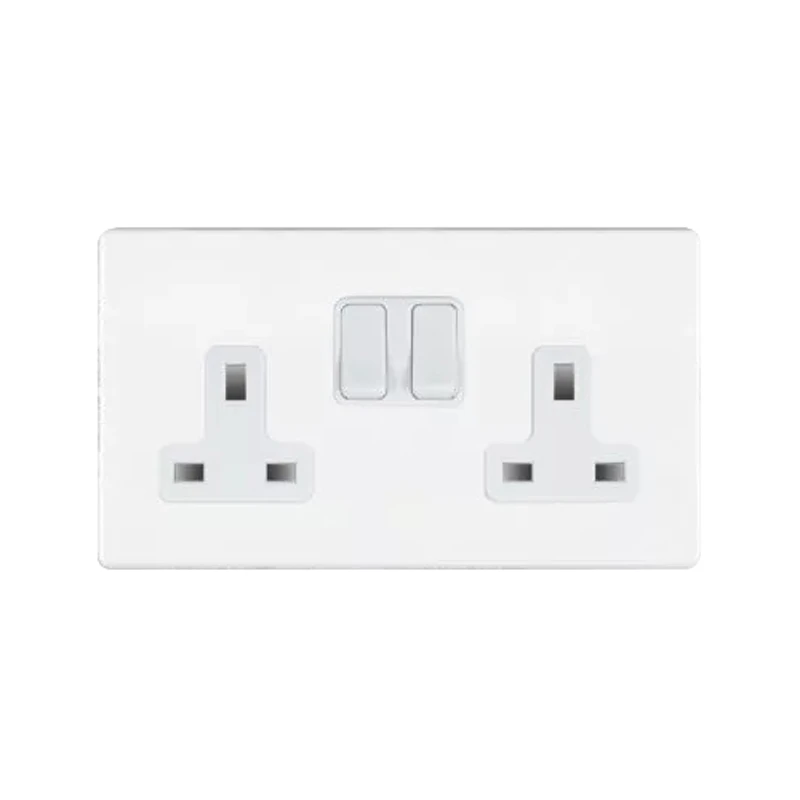

Socket 2 Gang Switched 13A 145 x 86mm Bright White White Insert
£21.24
Part Number: 2500413325 MPN: 7WCSS2WH-W Product Type: White Moulded Slimline
Description
Part Number: 2500413325 MPN: 7WCSS2WH-W Product Type: White Moulded Slimline
Product Details
Hamilton Hartland CFX Switched Socket Outlet is a slim and stylish design with soft rounded edges. The Hartland CFX range helps to provide the finishing touch to any project. The face plate is firmly held in place to the back frame with a patented 4 point clipping system, concealing the fixings for a seamless finish. Must be earthed. Internal Use Only. Dual Earth: Yes.
- Double – Nominal Dimensions H: 86.0mm W: 146.0mm D: 5.0mm – Box Fixing Hole Centers: 120.6mm
- Generic Size: Double
- Switched Poles: Double
- Current Rating: 13 Amp
- Voltage: 220/250V AC
- Maximum Load 13 Amp
- Mains Frequency: 50Hz
- IP Rating: IP2XD
- Standard/Approval: BS 1363-2
- Insert Finish/Surround Colour: White/White – Plate Finish: Bright White
Technical Specifications
Multi combination switch/push button/socket outlet |
|
| Colour | White |
|---|---|
| Mounting method | Flush mounted |
| Degree of protection (IP rating) | IP2X |
| Method of operation | Rocker |
| Nominal voltage | 250 V |
| Number of switchable socket outlets | 2 |
|---|---|
| With lighting | No |
| Number of socket outlets total | 2 |
| Rated current | 13 A |
