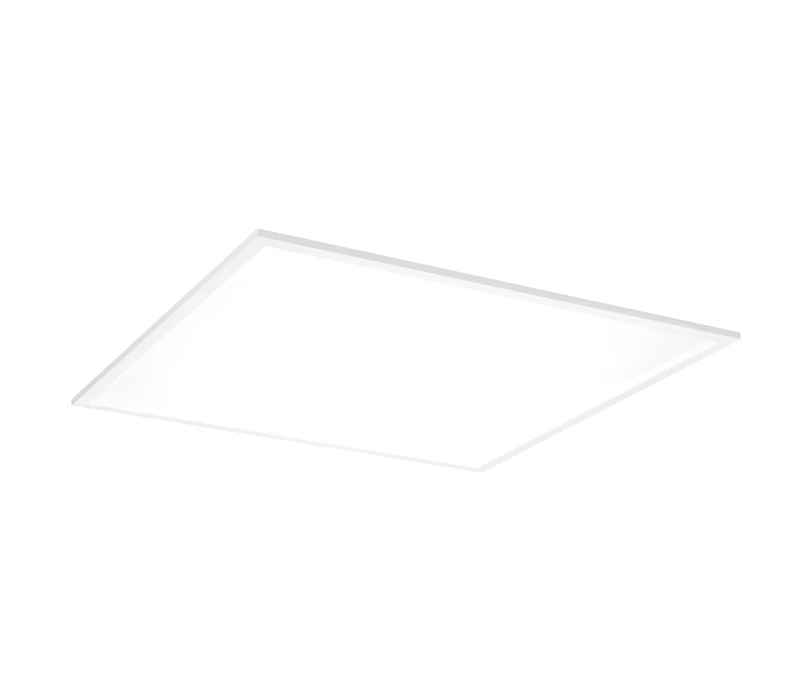

596X596X60Mm Anna Varioflex Q596 3000K 3500K & 4000K 4400Lm Ugr19 Flex Output Recessed Led Panel

£91.90

Part Number: 2501496076   MPN: AN4400ZVF6X6   Product Type: Commercial Lighting

Categories: , , ,

Description

Part Number: 2501496076   MPN: AN4400ZVF6X6   Product Type: Commercial Lighting

Product Details

LED Panel with homogenous light emitting surface and FLEX technology, UGR 80, colour temperature 3000/3500/4000 K adjustable via switch. Lifetime: 50.000h L80, Chromaticity tolerance (initial MacAdam): 4. Included connector for easy and tool-free loop-in loop-out wiring, Flicker free, compatible with Plug&Play Emergency kit for 3 hour emergency conversion. Suitable for lay-in installation. Surface or recessed mounting box as well a suspension kit available as accessory. Input power adjustable on site by 4 step (FLEX1 – 4400 lm (40W), FLEX2 – 4000 lm (35W), FLEX3 – 3750 lm (33W), FLEX4 – 3000 lm (22W)). For flex data on other colour temperatures please visit website. Dimensions: 596 x 596 x 60 mm, weight: 1.86 kg.

  • · Gentle, soft and glare free lighting (UGR <19)
  • · Three colour temperatures in one product – 3000 K (warm white), 3500 K or 4000 K (neutral white)
  • · Anna Vario Flex: Decide on your lumen package in four steps directly on site
  • · Even surface and IP44 (from below) for hassle-free cleaning

Technical Specifications

Ceiling / wall luminaire
Dimming sine wave reduction No
Dimming manufacturer’s proprietary system No
Dimming LineSwitch No
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DMX No
Dimming DALI No
Dimming potentiometer (integrated) No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
Dimming RF No
Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No
Dimming touch and dim No
Dimming Zigbee No
Dimming with push-button No
No dimming function Yes
Dimming mains voltage modulation No
Dimming trailing edge No
Dimming leading edge No
Dimming programmable No
Dimming DSI No
Replaceable control gear Yes
Nominal voltage 220 V
Light source type LED non-replaceable
Colour of light White
Colour temperature switchable Discrete positions
Protection class II
Voltage type AC
Degree of protection (IP rating) IP20
Width 596 mm
Power factor 0.95
Rated life time L70/B50 at 25 °C 74000 h
Length 596 mm
Colour temperature 3000 – 3000 K
Colour rendering index (CRI/Ra) 80-89
With light sensor Yes
Suitable for suspended mounting No
Suitable for recessed mounting Yes
Suitable for surface mounting No
Fit for workplace acc. EN 12464-1 Yes
Suitable for emergency lighting No
Lamp included Yes
Control gear included Yes
Suitable for ceiling mounting Yes
IFTTT support available No
