400A Triple Pole And Neutral Glasgow Switch-Disconnector Surface-Mounted Ral 7004

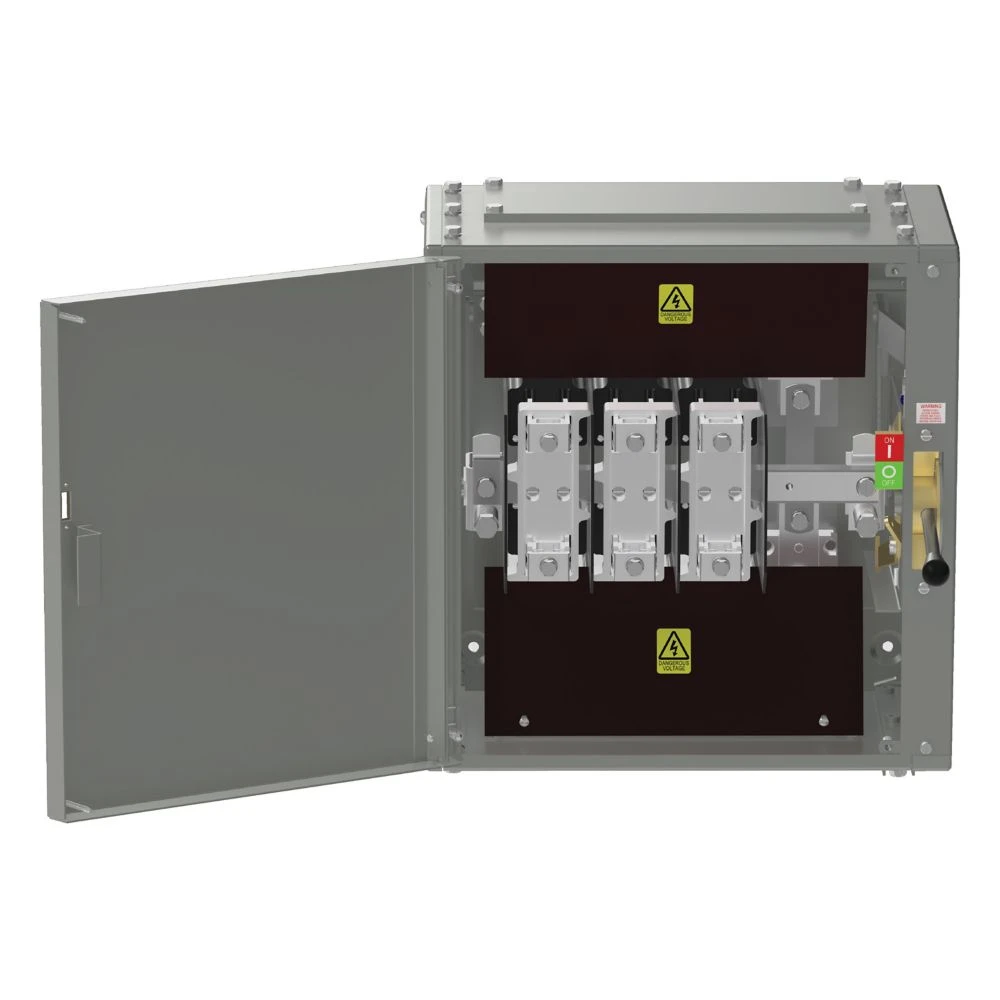

The Eaton 403GN is a 400A TP+N Fuse Switch Disconnector. It is a surface-mounted device made from heavy gauge steel, making it durable. It is fitted with a 400A HRC Fuselink but it does accept fuselinks of a lower rating. The 403GN is a modular device, meaning that the enclosure and fuselink or switchlink are ordered separately. This allows for installation flexibility by pairing the required fuselink or switchlink with the necessary enclosure. The 403GN meets the constructional requirements for isolation and are type-tested to BS EN 60947-3. Conditional short circuit current rating tests at a value of 80kA rms Ue 415V have been carried out with Eaton HRC fuses fitted. The 403GN is a versatile and reliable device that can be used in a variety of applications. It is ideal for use in commercial and industrial settings, as well as in the home.

• 400A TP+N rating
• HRC Fuselink included
• Modular design
• Meets BS EN 60947-3
