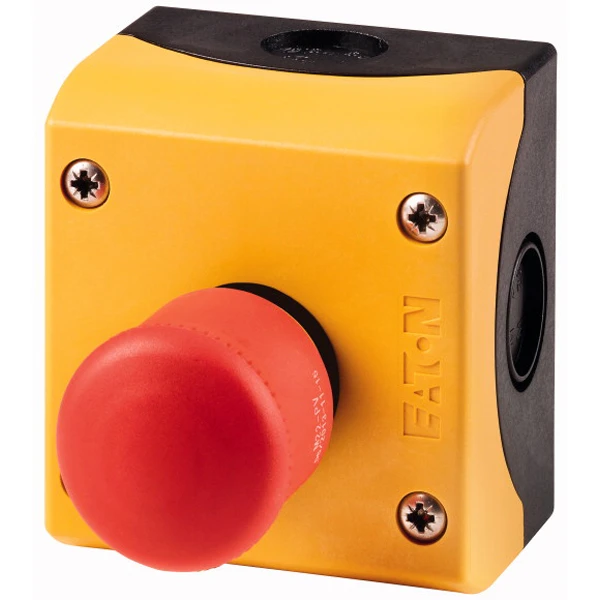

Housing, Controlled stop pushbuttons/emergency-stop buttons, Mushroom-shaped, 38 mm, Non-illuminated, Pull-to-release function, 1 NC, 1 N/O, Screw con
£68.44
Part Number: 2500088518 MPN: M22-PV/KC11/IY Product Type: Pushbuttons
Description
Product Details
Housing, Product range: RMQ-Titan, Complete unit, Design: Mushroom-shaped, Diameter: 38 mm, Non-illuminated, Pull-to-release function, Connection type: Screw connection, Description: Tamper-proof according to ISO 13850/EN 418, Colour Mushroom head: Red, Colour Enclosure covers: Yellow, Degree of Protection: IP66, IP69K, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Contacts Notes = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Front dimensions: 35, Standards: IEC/EN 60947, VDE 0660, Mounting position: As required
- Colour: Red
- Contact Configuration: 1NO/1NC
- Length: 75.1mm
- Material: Plastic
- Actuator Type: Pull-to-release
- Button Colour: Red
- Diameter: 38mm
- IP Rating: IP67
- Normal State Configuration: 1NO + 1NC
Technical Specifications
Control circuit devices combination in enclosure |
|
| Colour housing cover | Yellow |
|---|---|
| Degree of protection (NEMA) | 4X, 13 |
| Housing material | Plastic |
| Number of command positions | 1 |
| Number of indicator lights | 0 |
| Number of key switches | 0 |
| Number of push buttons | 0 |
| Number of selector switches | 0 |
| Number of contacts as normally open contact | 1 |
|---|---|
| Number of mushroom-shaped push-buttons | 1 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as change-over contact | 0 |
| Rated control supply voltage at AC 50 Hz | 115 – 500 V |
| Rated control supply voltage at DC | 24 – 220 V |
| Suitable for emergency stop | Yes |
| Rated control supply voltage at AC 60 Hz | 115 – 500 V |
Additional information
| Weight | 0.0664 kg |
|---|---|
| Dimensions | 3.9 × 1.9 cm |
