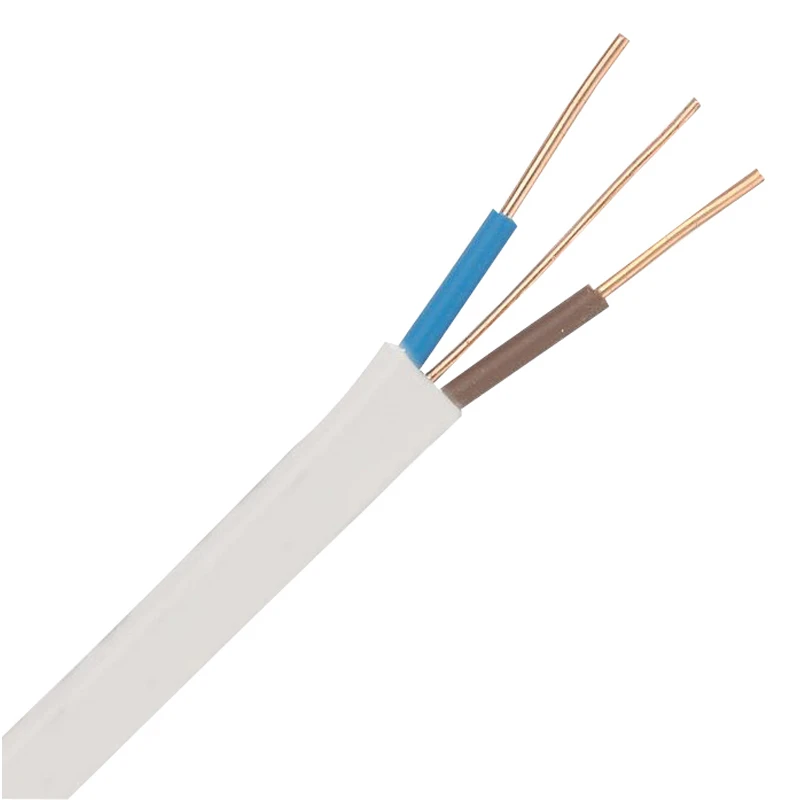

6242BH 6.0mm² White Basec Cable 2-Core&Earth
£6.75 per m
Part Number: 2500143138 MPN: 20145110 Product Type: Twin & Earth (6242)
Additional information
| Weight | 205 kg |
|---|---|
| Brands |
Product Details
Prysmian 6242B is a flat twin core Low Smoke, Zero Halogen (LSOH®) cable designed for installation as clipped direct, on tray or in basket and also buried within plaster or embedded in walls. Two cores with bare CPC
- Suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster.
- Suitable for situations in which low emission smoke and acid gas is required in case of burning.
- Length in metres: 100
- No. of cores: 2
- Product Packaging: Reel
- Low Smoke Zero Halogen
- Standard: BS7211
Technical Specifications
Power cable < 1 kV, for fixed installations
| Nominal voltage U | 500 V |
|---|---|
| Oil resistant according to IEC 60811-404 | No |
| Low temperature resistant according to EN 60811-504+505+506 | No |
| Screen | No |
| Drain wire | Yes |
| Permitted cable outer temperature during assembling/handling | 0 – 80 °C |
| Max. conductor temperature | 90 °C |
| Nominal voltage U0 | 300 V |
| Number of cores | 2 |
| Nominal cross sectional area of conductor | 6 mm² |
| Core insulation material | Polyolefin |
| Core identification | Colour |
| Core colour | Several |
| Sheath colour | White |
| Protective barrier | None |
| Conductor material | Copper |
| Conductor surface | Bare |
| Conductor category | Class 2 = stranded |
| Sheath material | Polyolefin |
