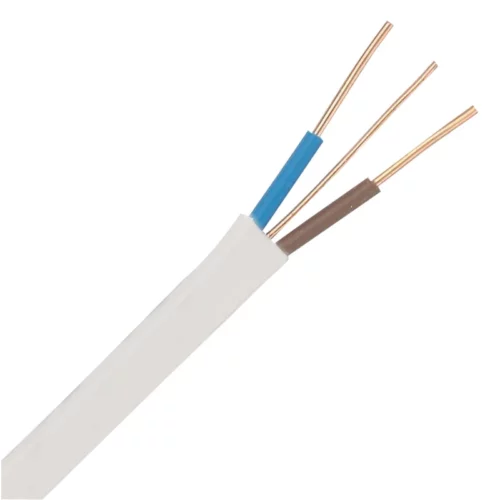

6242BH 1.5mm² White Basec Cable 2-Core&Earth

£3.29 per item

Part Number: 2500143124  MPN: 20145114    Product Type: Twin & Earth (6242)
Total Other (item)
Product Price
Categories: , ,

Description

Part Number: 2500143124  MPN: 20145114    Product Type: Twin & Earth (6242)

Product Details

Prysmian 6242B is a flat twin core Low Smoke, Zero Halogen (LSOH®) cable designed for installation as clipped direct, on tray or in basket and also buried within plaster or embedded in walls. Two cores with bare CPC

  • Suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster.
  • Suitable for situations in which low emission smoke and acid gas is required in case of burning.
  • Length in metres: 100
  • No. of cores: 2
  • Product Packaging: Reel
  • Low Smoke Zero Halogen
  • Standard: BS7211

Technical Specifications

Power cable < 1 kV, for fixed installations
Nominal cross sectional area of conductor 1.5 mm²
Oil resistant according to IEC 60811-404 No
Low temperature resistant according to EN 60811-504+505+506 No
Screen No
Drain wire Yes
Permitted cable outer temperature during assembling/handling 0 – 80 °C
Nominal voltage U0 300 V
Max. conductor temperature 90 °C
Number of cores 2
Nominal voltage U 500 V



Core insulation material Polyolefin
Core identification Colour
Sheath colour White
Core colour Several
Conductor surface Bare
Protective barrier None
Conductor category Class 1 = solid
Conductor material Copper
Sheath material Polyolefin
