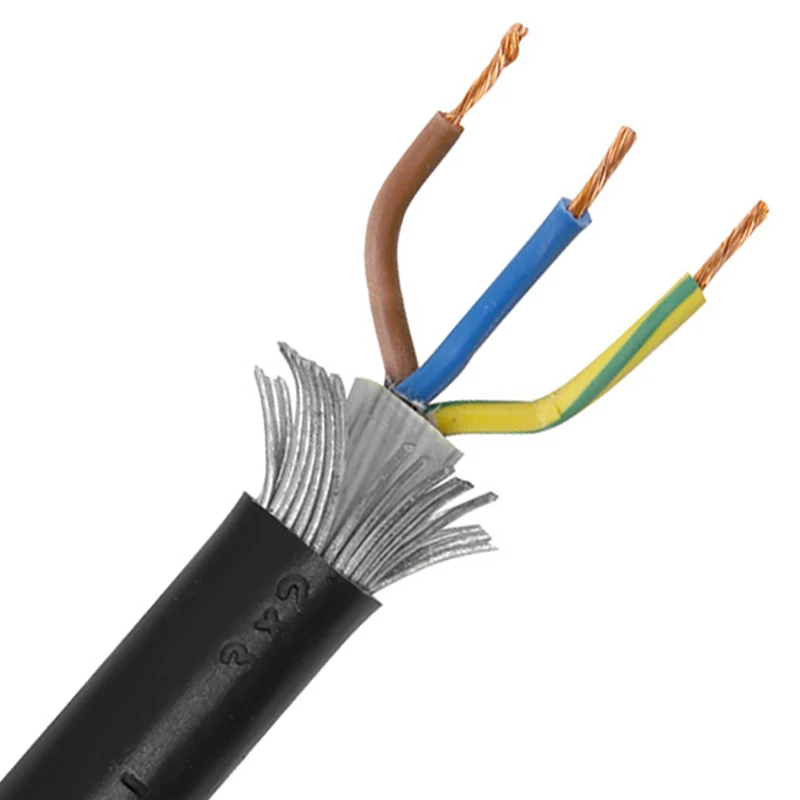

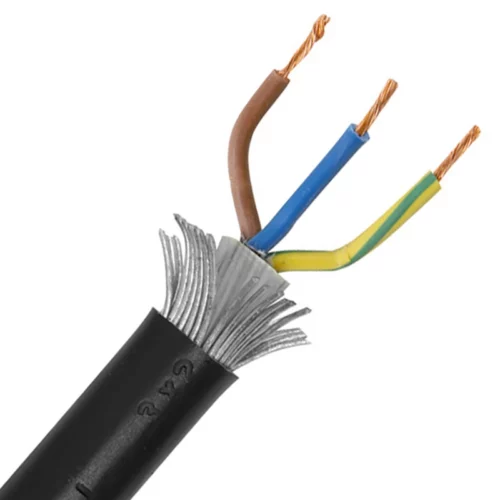

6943LSH 16.0mm Black XLPE/SWA/Basec Cable 3-Core 1m
£17.47
Part Number: 2500147541 MPN: 20147053 Product Type: Steel Wire Armoured (SWA)
Additional information
| Brands |
|---|
Product Details
This product is cut to specification. Hence, when ordering, a multiple of 1 needs to be entered.
- Cable Size: 16.0mm
- Colour: Black
- Length in metres: 1
- No. of cores: 3
- Product Packaging: Cut
- Low Smoke Fume
- Standard: BS6724
Technical Specifications
Power cable >= 1 kV, for fixed installations
| Number of cores | 3 |
|---|---|
| Lead sheath | No |
| Halogen free according to IEC 60754-2 | No |
| Screen | No |
| Permitted cable outer temperature during assembling/handling | 0 – 80 °C |
| Outer diameter approx. | 21 mm |
| Max. conductor temperature | 90 °C |
| Nominal voltage U0 | 600 kV |
| Nominal voltage U | 1000 kV |
| Nominal cross sectional area of conductor | 16 mm² |
| Concentric conductor | None |
| Core identification | Colour |
| Conductor surface | Bare |
| Shape of conductor | Round |
| Conductor category | Class 2 = stranded |
| Sheath material | Polyolefin |
| Sheath colour | Black |
| Core insulation material | Polyolefin |
| Conductor material | Copper |
