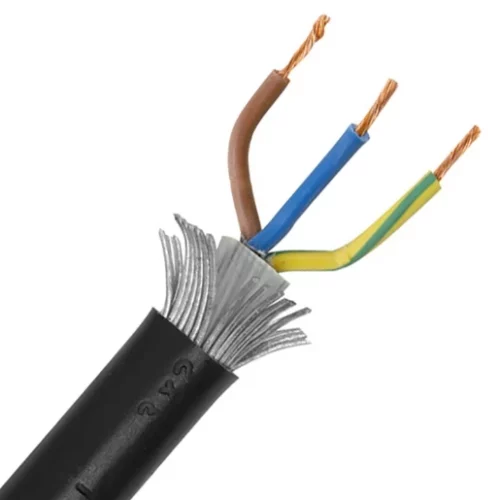

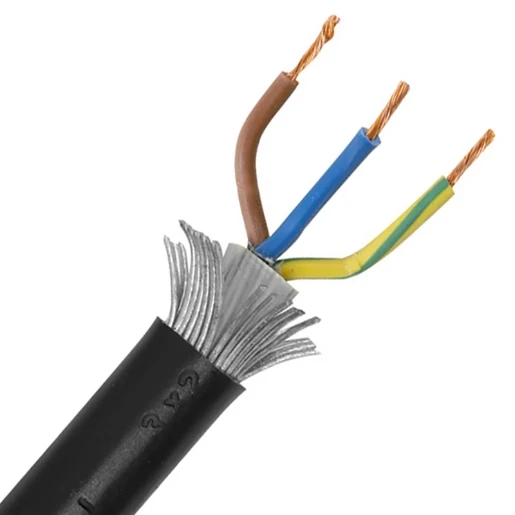

6943LSH 1.5mm Black XLPE/SWA/Basec Cable 3-Core 1m

£3.30

Part Number: 2500147516    MPN: 20145249     Product Type: Steel Wire Armoured (SWA)

Categories: , ,

Description

Part Number: 2500147516    MPN: 20145249     Product Type: Steel Wire Armoured (SWA)

Product Details

This product is cut to specification. Hence when ordering, a mutiple of 1 needs to be entered.

  • Cable Size: 1.5mm
  • Colour: Black
  • Length in metres: 1
  • No. of cores: 3
  • Product Packaging: Cut
  • Low Smoke Fume
  • Standard: BS6724

Technical Specifications

Power cable >= 1 kV, for fixed installations
Max. conductor temperature 90 °C
Halogen free according to IEC 60754-2 No
Screen No
Lead sheath No
Permitted cable outer temperature during assembling/handling 0 – 80 °C
Number of cores 3
Nominal voltage U 1000 kV
Nominal voltage U0 600 kV
Nominal cross sectional area of conductor 1.5 mm²
Outer diameter approx. 11.2 mm



Shape of conductor Round
Core identification Colour
Sheath material Polyolefin
Conductor category Class 2 = stranded
Conductor surface Bare
Conductor material Copper
Core insulation material Polyolefin
Concentric conductor None
Sheath colour Black
