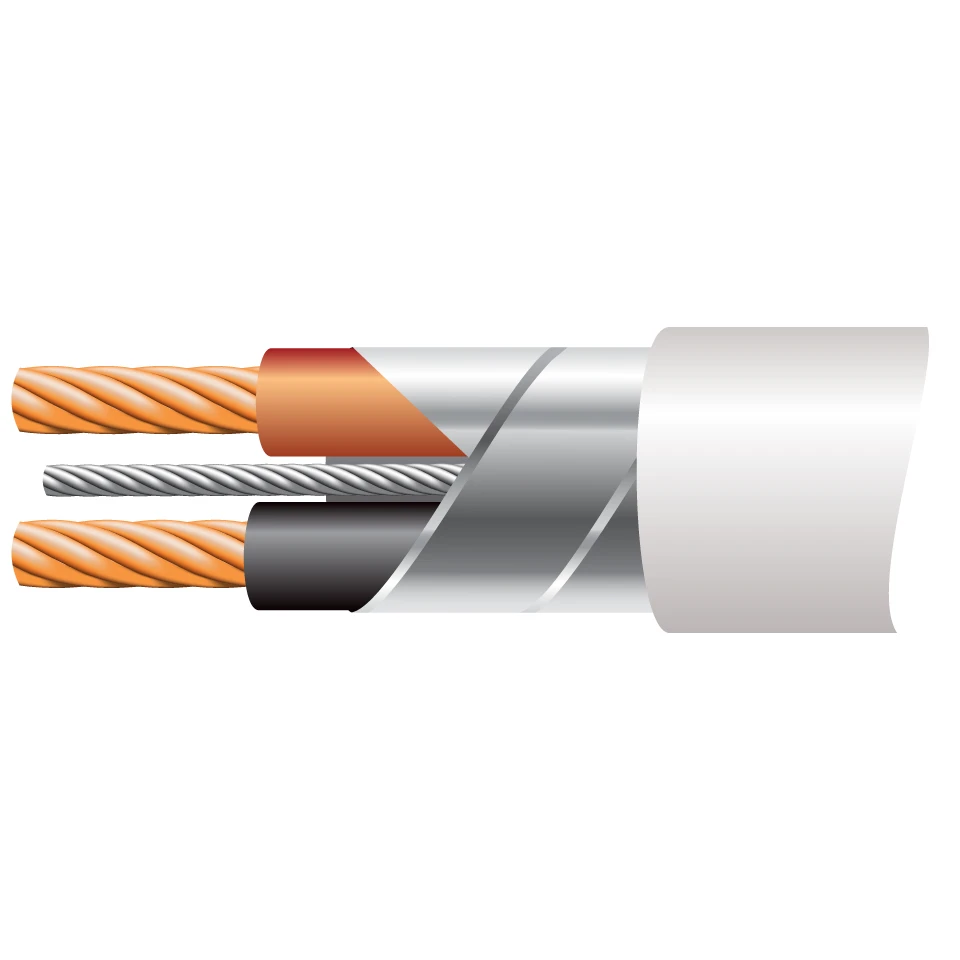

LSXH 1.5mm² White Afumex Earthshield Cable 2-Core 100m Reel

£4.44

Part Number: 2500042685    MPN: 20175527     Product Type: Fire Cables
Categories: , ,

Description

Part Number: 2500042685    MPN: 20175527     Product Type: Fire Cables

Product Details

Prysmian LSX® is a Low Smoke, Zero Halogen (LSOH®) and flame retardant cable developed to address specific needs of the modern building services and systems

  • Low voltage circuits typically lighting and power distribution, in buildings.
  • Suitable for clipped, surface, tray and void installation.
  • Low smoke, zero halogen and flame retardant.
  • Ideal for all non-emergency circuits in public buildings.
  • Fully screened design provides EMC protection for signal clarity

Technical Specifications

Power cable < 1 kV, for fixed installations
Nominal cross sectional area of conductor 1.5 mm²
Low temperature resistant according to EN 60811-504+505+506 No
Oil resistant according to IEC 60811-404 No
Screen Yes
Drain wire Yes
Permitted cable outer temperature during assembling/handling 0 – 60 °C
Outer diameter approx. 9.9 mm
Number of cores 2
Max. conductor temperature 70 °C
Nominal voltage U0 300 V



Conductor surface Bare
Nominal voltage U 500 V
Core colour Several
Reaction-to-fire according to EN 13501-6: Class Aca
Sheath colour White
Protective barrier None
Conductor material Copper
Core identification Colour
Core insulation material Polyolefin
Sheath material Polyolefin
Conductor category Class 2 = stranded
