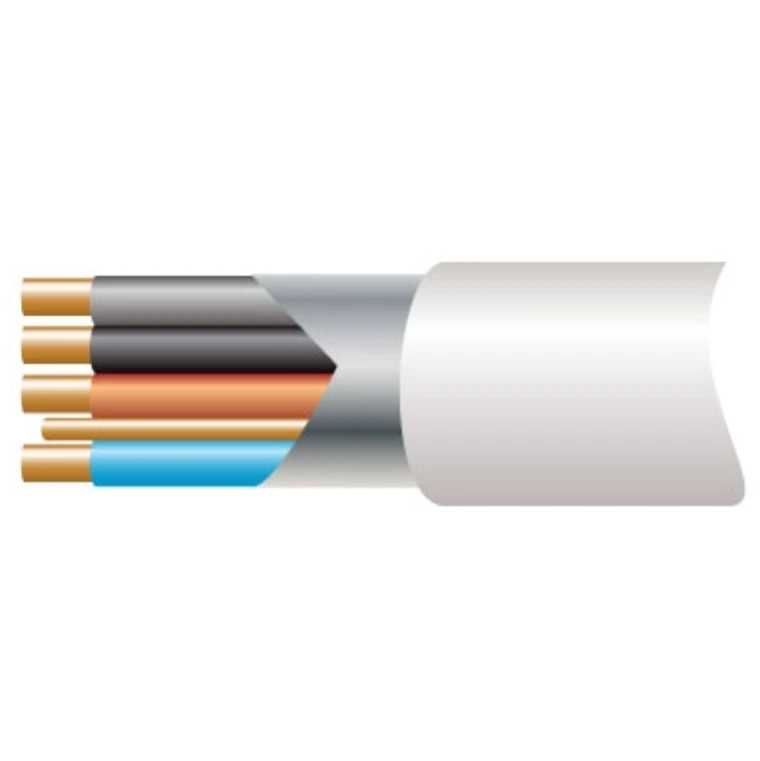

FPPLUS4C 1.5mm² White Fire Performance Soft Skin Enhanced Cable 4-Core

£6.95

Part Number: 1052054518     MPN: 20146490     Product Type: Fire Cables

Description

Part Number: 1052054518     MPN: 20146490     Product Type: Fire Cables

Product Details

Prysmian FP PLUS is the ‘Enhanced’, hard skin, dressable fire resistant cable most commonly needed for fire alarm and emergency lighting circuits

  • Fire detection and fire alarm systems for buildings.
  • Voice alarm systems and emergency voice communication.
  • Emergency and escape lighting.
  • Control circuits for fire safety and fire fighting systems.
  • Other essential service control circuits for “Enhanced” fire resistance.

Technical Specifications

Power cable < 1 kV, for fixed installations
Nominal voltage U 500 V
Low temperature resistant according to EN 60811-504+505+506 No
Oil resistant according to IEC 60811-404 No
Screen Yes
Drain wire Yes
Permitted cable outer temperature during assembling/handling 0 – 60 °C
Outer diameter approx. 12.5 mm
Max. conductor temperature 70 °C
Number of cores 4
Nominal voltage U0 300 V



Sheath colour Red
Nominal cross sectional area of conductor 1.5 mm²
Core identification Colour
Core colour Several
Conductor category Class 1 = solid
Protective barrier None
Sheath material Polyolefin
Conductor surface Bare
Conductor material Copper
Core insulation material Polyolefin
