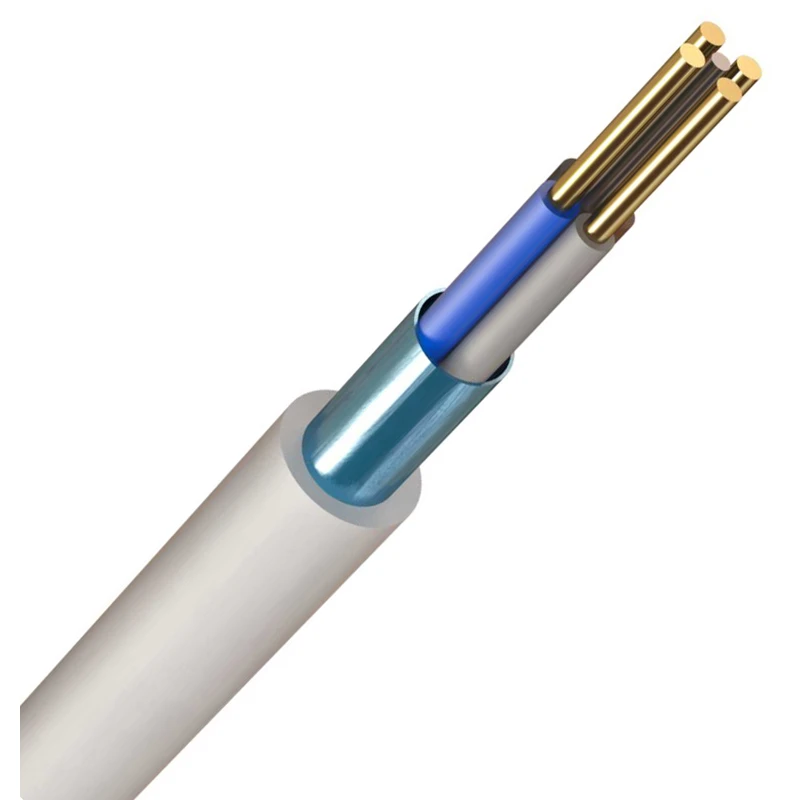

FP200G4C 2.5mm² White Fire Performance Soft Skin Standard Cable 4-Core

FP200G4C 2.5mm² White Fire Performance Soft Skin Standard Cable 4-Core

£7.66

Part Number: 2500043089     MPN: 20145596    Product Type: Fire Cables
Categories: , ,

Description

Part Number: 2500043089     MPN: 20145596    Product Type: Fire Cables

Product Details

Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards

  • Fire detection and fire alarm systems for buildings.
  • Voice alarm systems and emergency voice communication.
  • Emergency and escape lighting.
  • Control circuits for life safety and fire fighting systems.
  • Other essential service control circuits for “Standard” fire resistance.

Technical Specifications

Power cable < 1 kV, for fixed installations
Nominal cross sectional area of conductor 2.5 mm²
Low temperature resistant according to EN 60811-504+505+506 No
Oil resistant according to IEC 60811-404 No
Screen Yes
Permitted cable outer temperature during assembling/handling 0 – 60 °C
Outer diameter approx. 11.9 mm
Drain wire Yes
Max. conductor temperature 70 °C
Number of cores 4
Nominal voltage U0 300 V



Core insulation material Polyolefin
Nominal voltage U 500 V
Core identification Colour
Core colour Several
Conductor category Class 1 = solid
Conductor material Copper
Protective barrier None
Sheath colour Red
Conductor surface Bare
Sheath material Polyolefin
