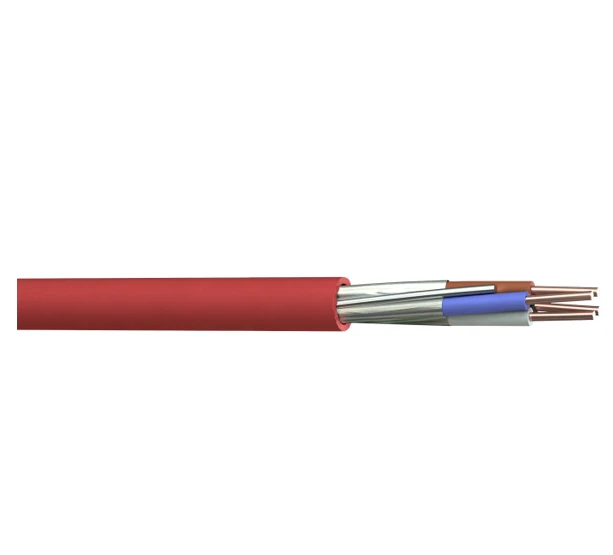

FP200G4C 1.5mm² Red Fire Performance Soft Skin Standard Cable 4-Core 500m Reel

£34.25

Part Number: 1050285569    MPN: 20108633        Product Type: Fire Cables
Categories: , ,

Description

Part Number: 1050285569    MPN: 20108633        Product Type: Fire Cables

Product Details

1.5mm Red 4C 500M Fire Performance Soft Skin

  • Colour: Red
  • Length: 200m
  • Voltage Rating: 300V
  • Conductor Material: Annealed Copper
  • Cores: Plain Annealed Copper 1.5mm²
  • Diameter: 8.1mm
  • Number of Cores: 2 Core
  • Operating Temperature: -20 to 70°C

Technical Specifications

Power cable < 1 kV, for fixed installations
Nominal voltage U 500 V
Low temperature resistant according to EN 60811-504+505+506 No
Oil resistant according to IEC 60811-404 No
Screen Yes
Drain wire Yes
Permitted cable outer temperature during assembling/handling 0 – 60 °C
Outer diameter approx. 10 mm
Max. conductor temperature 70 °C
Number of cores 4
Nominal voltage U0 300 V



Sheath colour Red
Nominal cross sectional area of conductor 1.5 mm²
Core identification Colour
Core colour Several
Conductor category Class 1 = solid
Protective barrier None
Conductor material Copper
Sheath material Polyolefin
Core insulation material Polyolefin
Conductor surface Bare
