FP200G3C 1.5mm² White Fire Performance Soft Skin Standard Cable 3-Core

£6.03

Part Number: 2500055821      MPN: 20145424     Product Type: Fire Cables
Categories: , ,

Description

Part Number: 2500055821      MPN: 20145424     Product Type: Fire Cables

Product Details

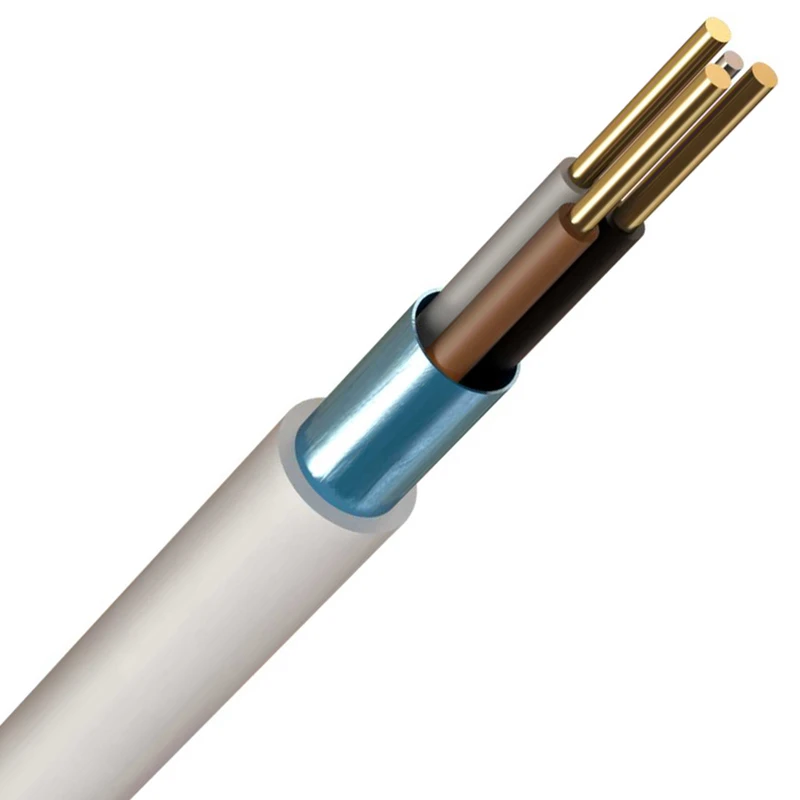

Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards

  • Robust thermoplastic LSOH sheath
  • Laminated aluminium tape bonded to sheath
  • High performance damage resistant Insudite insulation
  • Plain annealed solid copper conductors 1.0mm – 2.5mm
  • Plain annealed stranded copper conductors for 4.0mm

Technical Specifications

Power cable < 1 kV, for fixed installations
Nominal voltage U0 300 V
Oil resistant according to IEC 60811-404 No
Low temperature resistant according to EN 60811-504+505+506 No
Screen Yes
Drain wire Yes
Permitted cable outer temperature during assembling/handling 0 – 60 °C
Outer diameter approx. 8.5 mm
Max. conductor temperature 70 °C
Number of cores 3
Nominal voltage U 500 V



Core insulation material Polyolefin
Nominal cross sectional area of conductor 1.5 mm²
Core identification Colour
Core colour Several
Conductor material Copper
Conductor category Class 1 = solid
Protective barrier None
Sheath colour Red
Conductor surface Bare
Sheath material Polyolefin
