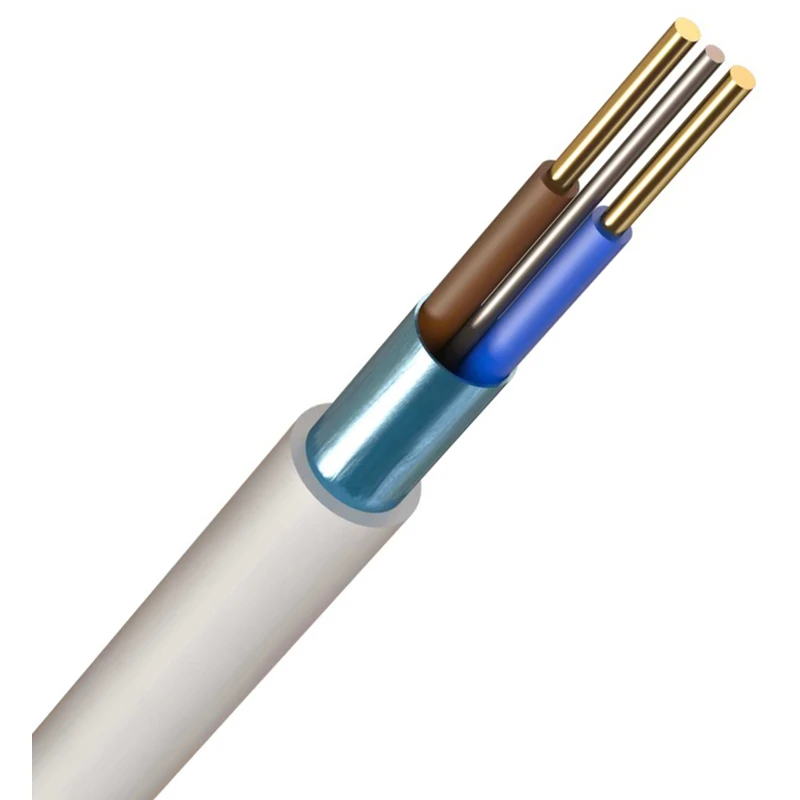

FP200G2C 4.0mm² White Fire Performance Soft Skin Standard Cable 2-Core

FP200G2C 4.0mm² White Fire Performance Soft Skin Standard Cable 2-Core

£10.10

Part Number: 2500043032     MPN: 20145396    Product Type: Fire Cables
Add to Wishlist
Add to Wishlist
Categories: , ,

Description

Part Number: 2500043032     MPN: 20145396    Product Type: Fire Cables

Product Details

Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards

  • Robust thermoplastic LSOH sheath
  • Laminated aluminium tape bonded to sheath
  • High performance damage resistant Insudite insulation
  • Plain annealed solid copper conductors 1.0mm – 2.5mm
  • Plain annealed stranded copper conductors for 4.0mm

Technical Specifications

Power cable < 1 kV, for fixed installations
Nominal voltage U 500 V
Low temperature resistant according to EN 60811-504+505+506 No
Oil resistant according to IEC 60811-404 No
Screen Yes
Drain wire Yes
Permitted cable outer temperature during assembling/handling 0 – 60 °C
Outer diameter approx. 11.6 mm
Max. conductor temperature 70 °C
Number of cores 2
Nominal voltage U0 300 V



Core insulation material Polyolefin
Core identification Colour
Nominal cross sectional area of conductor 4 mm²
Core colour Several
Protective barrier None
Conductor material Copper
Sheath colour Red
Conductor surface Bare
Sheath material Polyolefin
Conductor category Class 2 = stranded
