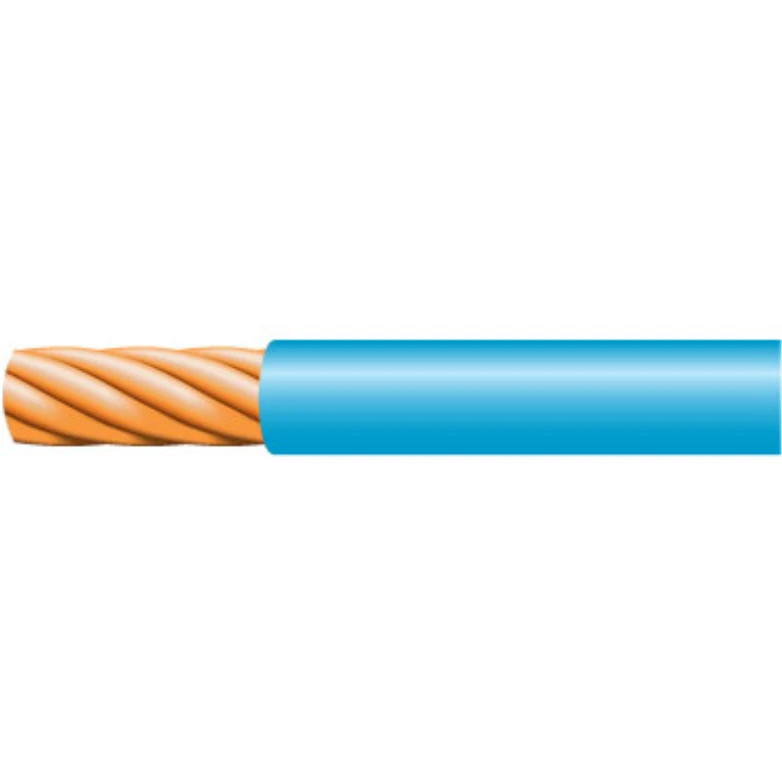

6491X 4.0mm² Blue PVC Basec Cable 1-Core
£1.15 per m
Part Number: 2500019584 MPN: 20145228 Product Type: 6491 (Singles)
Additional information
| Weight | 47 kg |
|---|---|
| Brands |
Products Details
Prysmian 6491X is a single core, low voltage wiring cable designed for installation within conduit, trunking or inside fixed protected environments
- Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation
- Green/Yellow for use as earth can be installed without mechanical protection.
- Length in metres: 100
- No. of cores: 1
- Product Packaging: Reel
- Material: PVC
- Standard: BS EN 50525-2-31
Technical Specifications
Power cable < 1 kV, for fixed installations
| Conductor category | Class 2 = stranded |
|---|---|
| Conductor surface | Bare |
| Conductor material | Copper |
| Core colour | Blue |
| Core identification | Colour |
| Core insulation material | Polyvinyl chloride (PVC) |
| Nominal cross sectional area of conductor | 4 mm² |
| Nominal voltage U | 750 V |
| Nominal voltage U0 | 450 V |
| Max. conductor temperature | 70 °C |
| Outer diameter approx. | 4.2 mm |
| Min. permitted bending radius, stationary application/permanent installation | 26 mm |
| Permitted cable outer temperature during assembling/handling | 0 – 60 °C |
| Oil resistant according to IEC 60811-404 | No |
| Low temperature resistant according to EN 60811-504+505+506 | No |
