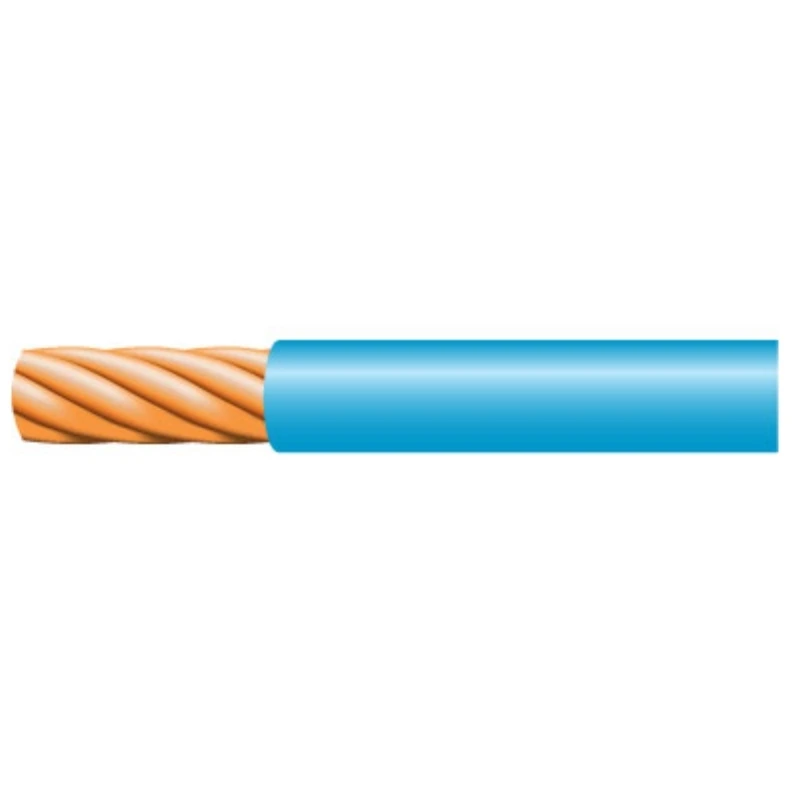

6491X 1.5mm² Blue PVC Basec Cable 1-Core

£0.72

Part Number: 2500019600       MPN: 20145134    Product Type: 6491 (Singles)
Categories: , ,

Description

Part Number: 2500019600       MPN: 20145134    Product Type: 6491 (Singles)

Product Details

Prysmian 6491X is a single core, low voltage wiring cable designed for installation within conduit, trunking or inside fixed protected environments

  •  Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation
  • Green/Yellow for use as earth can be installed without mechanical protection.
  • Length in metres: 100
  • No. of cores: 1
  • Product Packaging: Reel
  • Material: PVC
  • Standard: BS EN 50525-2-31

Technical Specifications

Power cable < 1 kV, for fixed installations
Nominal voltage U 750 V
Low temperature resistant according to EN 60811-504+505+506 No
Oil resistant according to IEC 60811-404 No
Twisted cores No
Permitted cable outer temperature during assembling/handling 0 – 60 °C
Min. permitted bending radius, stationary application/permanent installation 18 mm
Outer diameter approx. 3 mm
Max. conductor temperature 70 °C
Nominal voltage U0 450 V
Number of cores 1



Conductor category Class 2 = stranded
Nominal cross sectional area of conductor 1.5 mm²
Sheath material Polyvinyl chloride (PVC)
Core insulation material Polyvinyl chloride (PVC)
Core identification Colour
Armouring/reinforcement None
Core colour Blue
Sheath colour Blue
Conductor material Copper
Conductor surface Bare
