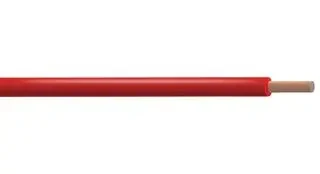

6491X 1.0mm Red PVC Basec Cable 1-Core 100m
£0.48 per m
Part Number: 2500598342 MPN: 20145134 Product Type: 6491 (Singles)
Additional information
| Weight | 3 kg |
|---|---|
| Brands |
Product Details
Prysmian 6491X is a single core, low voltage wiring cable designed for installation within conduit, trunking or inside fixed protected environments
- Manufactured under ISO 9001 Quality management systems
- Conductor material Copper
- Core insulation material Polyvinyl chloride (PVC)
- Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation in or on lighting fittings and inside appliances, switch gear and control gear
- Product Packaging: Reel
- Material: PVC
- Standard: BS EN 50525-2-31
Technical Specifications
Power cable < 1 kV, for fixed installations
| Nominal voltage U | 750 V |
|---|---|
| Low temperature resistant according to EN 60811-504+505+506 | No |
| Oil resistant according to IEC 60811-404 | No |
| Min. permitted bending radius, stationary application/permanent installation | 18 mm |
| Twisted cores | No |
| Permitted cable outer temperature during assembling/handling | 0 – 60 °C |
| Outer diameter approx. | 3 mm |
| Max. conductor temperature | 70 °C |
| Nominal voltage U0 | 450 V |
| Number of cores | 1 |
| Conductor category | Class 2 = stranded |
| Nominal cross sectional area of conductor | 1.5 mm² |
| Sheath material | Polyvinyl chloride (PVC) |
| Core insulation material | Polyvinyl chloride (PVC) |
| Core identification | Colour |
| Armouring/reinforcement | None |
| Core colour | Blue |
| Sheath colour | Blue |
| Conductor material | Copper |
| Conductor surface | Bare |
