Name: 6491B 4.0mm² Green/Yellow Basec Cable 1-Core
SKU: 3584
Availability: InStock

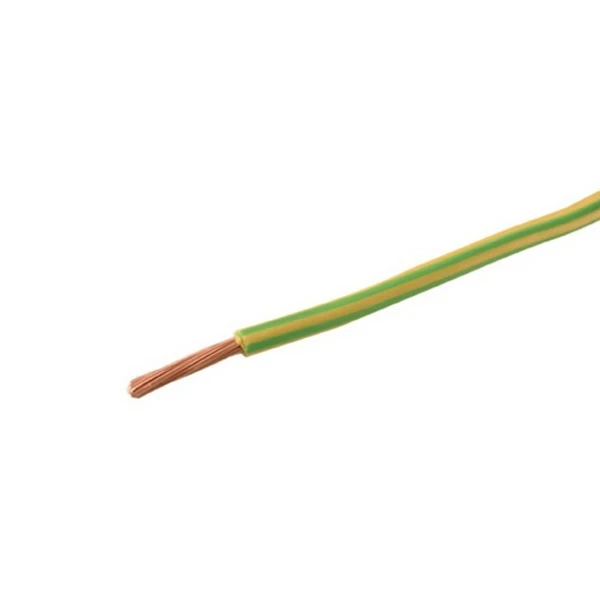

6491B 4.0mm² Green/Yellow Basec Cable 1-Core

£1.66

Part Number: 2501148610 MPN: 20147333 Product Type: 6491 (Singles)

Description

Part Number: 2501148610 MPN: 20147333 Product Type: 6491 (Singles)

Product Details

Prysmian 6491B is a single core, low voltage Low Smoke, Zero Halogen (LSOH®) wiring cable designed for installation within conduit, trunking or inside fixed protected environments

Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation.
Particularly used in situations where low emissions of smoke and acid gas is required in case of burning.
Green/Yellow for use as earth can be installed without mechanical protection.
No. of cores: 1
Product Packaging: Reel
Low Smoke Zero Halogen
Standard: BS EN 50525-3-41

Technical Specifications

Power cable < 1 kV, for fixed installations
Conductor category	Class 2 = stranded
Conductor surface	Bare
Conductor material	Copper
Core colour	Blue
Core identification	Colour
Nominal cross sectional area of conductor	4 mm²
Nominal voltage U	750 V

Max. conductor temperature	90 °C
Nominal voltage U0	450 V
Outer diameter approx.	4.2 mm
Permitted cable outer temperature during assembling/handling	0 – 80 °C
Oil resistant according to IEC 60811-404	No
Low temperature resistant according to EN 60811-504+505+506	No
