6491B 16.0mm² Blue Basec Cable 1-Core

£4.50

Part Number: 2500062479    MPN: 20146896    Product Type: 6491 (Singles)



Categories: , ,

Description

Part Number: 2500062479    MPN: 20146896    Product Type: 6491 (Singles)

Product Details

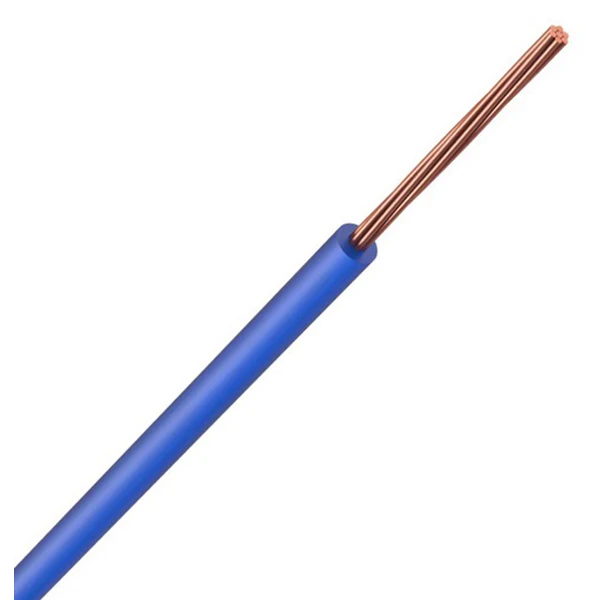

Prysmian 6491B is a single core, low voltage Low Smoke, Zero Halogen (LSOH®) wiring cable designed for installation within conduit, trunking or inside fixed protected environments

  • · Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation.
  • · Particularly used in situations where low emissions of smoke and acid gas is required in case of burning.
  • · Green/Yellow for use as earth can be installed without mechanical protection.
  • · No. of cores: 1
  • · Product Packaging: Reel
  • · Low Smoke Zero Halogen
  • · Standard: BS EN 50525-3-41

Technical Specifications

Power cable < 1 kV, for fixed installations
Nominal voltage U 750 V
Low temperature resistant according to EN 60811-504+505+506 No
Oil resistant according to IEC 60811-404 No
Twisted cores No
Permitted cable outer temperature during assembling/handling 0 – 80 °C
Outer diameter approx. 6.9 mm
Max. conductor temperature 90 °C
Nominal voltage U0 450 V
Number of cores 1



Conductor surface Bare
Nominal cross sectional area of conductor 16 mm²
Core identification Colour
Armouring/reinforcement None
Core colour Blue
Sheath colour Blue
Conductor material Copper
Conductor category Class 2 = stranded

Additional information
