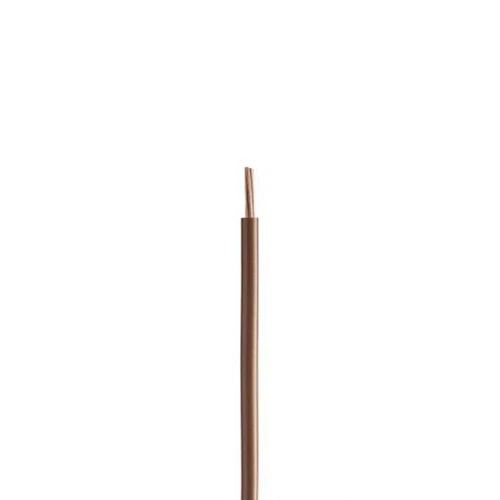

6491B 10.0mm² Brown Basec Cable 1-Core

6491B 10.0mm² Brown Basec Cable 1-Core

£4.80 per m

Part Number: 2500144662    MPN: 20146892     Product Type: 6491 (Singles)



Product Price
Add to Wishlist
Add to Wishlist
Categories: , ,

Additional information

Weight 120 kg
Brands

Product Details

Prysmian 6491B is a single core, low voltage Low Smoke, Zero Halogen (LSOH®) wiring cable designed for installation within conduit, trunking or inside fixed protected environments

  • Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation.
  • Particularly used in situations where low emissions of smoke and acid gas is required in case of burning.
  • Green/Yellow for use as earth can be installed without mechanical protection.
  • No. of cores: 1
  • Product Packaging: Reel
  • Low Smoke Zero Halogen
  • Standard: BS EN 50525-3-41

Technical Specifications

Power cable < 1 kV, for fixed installations
Conductor category Class 2 = stranded
Conductor surface Bare
Conductor material Copper
Sheath colour Brown
Core identification Colour
Nominal cross sectional area of conductor 10 mm²
Nominal voltage U 750 V
Core colour Brown
Number of cores 1
Outer diameter approx. 6.3 mm
Nominal voltage U0 450 V
Permitted cable outer temperature during assembling/handling 0 – 80 °C
Oil resistant according to IEC 60811-404 No
Max. conductor temperature 90 °C
Low temperature resistant according to EN 60811-504+505+506 No
