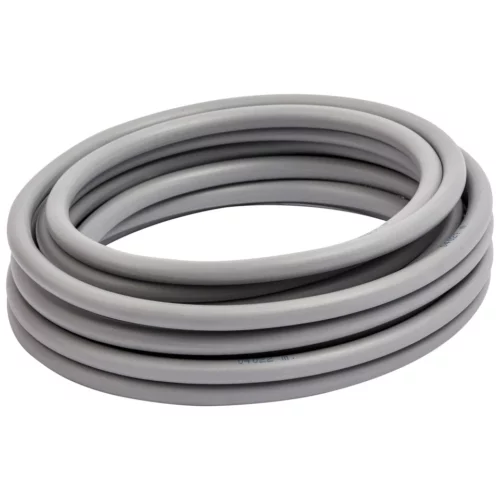

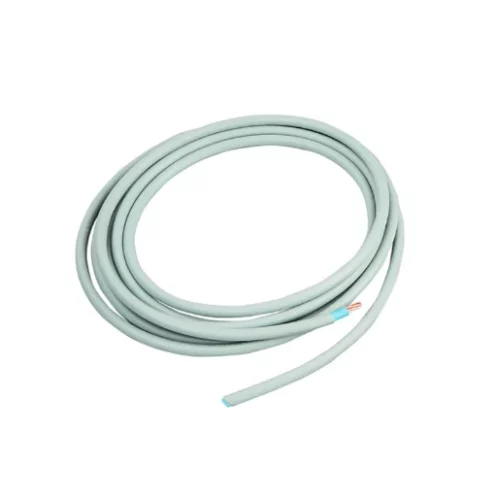

6181YH 16.0mm² Grey/Brown PVC Double Insulated Basec Cable 1-Core Tails

£6.84

Part Number: 2500142946       MPN: 20146945     Product Type: 6181Y (Tails)
Categories: , ,

Description

Part Number: 2500142946       MPN: 20146945     Product Type: 6181Y (Tails)

Product Details

Prysmian 6181Y is a low voltage single core, PVC insulated copper conductor with an additional PVC oversheath insulation for physical protection

  • Fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster.
  • Colour: Grey/Brown
  • Length in metres: 100
  • No. of cores: 1
  • Product Packaging: Reel
  • Tails
  • Material: PVC
  • Standard: BS6004

Technical Specifications

Power cable < 1 kV, for fixed installations
Number of cores 1
Low temperature resistant according to EN 60811-504+505+506 No
Oil resistant according to IEC 60811-404 No
Twisted cores No
Screen No
Permitted cable outer temperature during assembling/handling 0 – 60 °C
Drain wire No
Outer diameter approx. 9 mm
Max. conductor temperature 70 °C
Nominal voltage U0 300 V
Nominal voltage U 500 V



Conductor category Class 2 = stranded
Nominal cross sectional area of conductor 16 mm²
Sheath colour Grey
Core insulation material Polyvinyl chloride (PVC)
Sheath material Polyvinyl chloride (PVC)
Core identification Colour
Protective barrier None
Armouring/reinforcement None
Conductor material Copper
Conductor surface Bare
