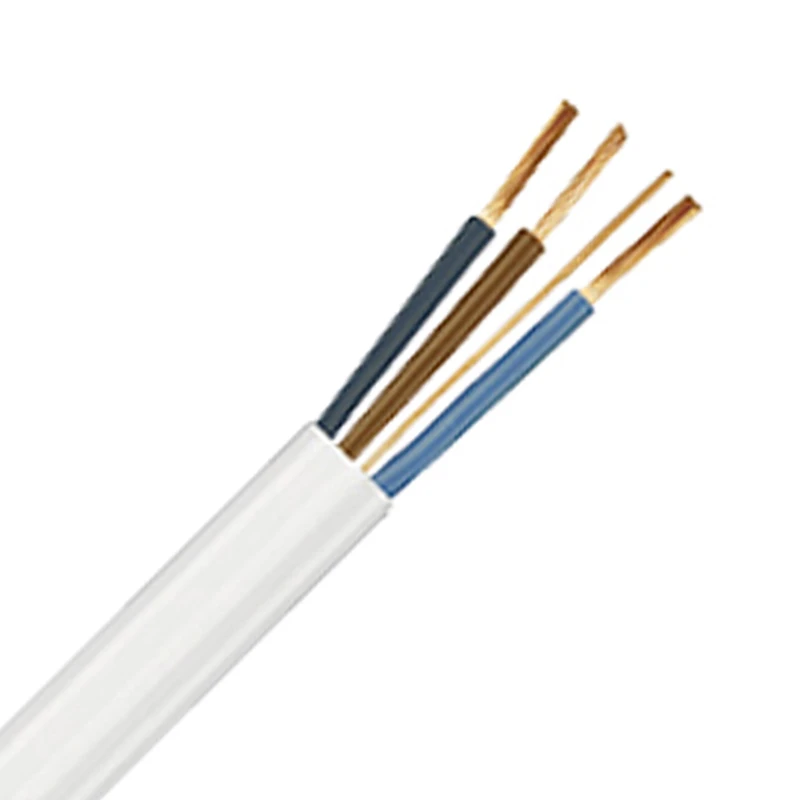

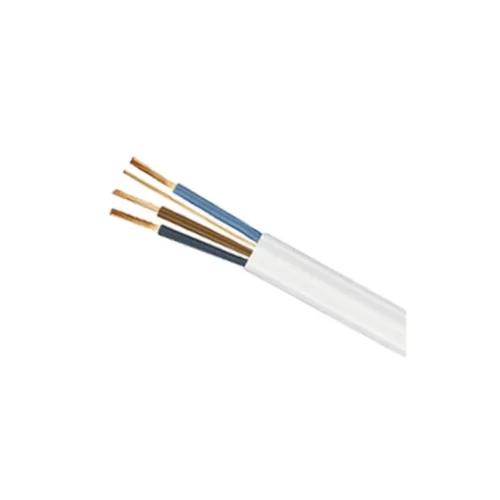

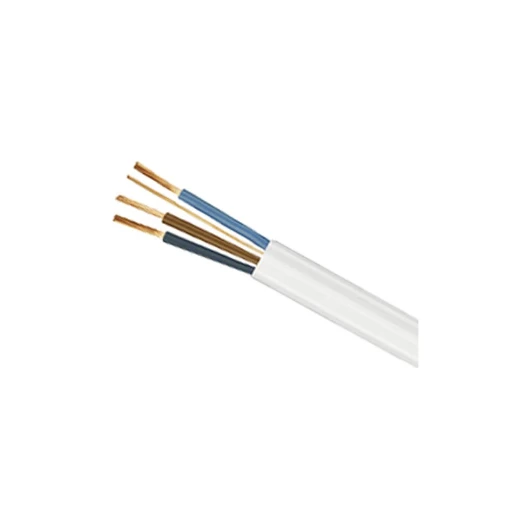

6243BH 2.5mm² White Basec Cable 3-Core&Earth
£2.22
Part Number: 2501148617 MPN: 20144972 Product Type: 3 Core & Earth (6243)
Description
Part Number: 2501148617 MPN: 20144972 Product Type: 3 Core & Earth (6243)
Product Details
Draka Saffire 6243B is a flat triple core OHLS® cable designed for installation as clipped direct, on tray or in basket and also buried within plaster or embedded in walls. Three cores with bare CPC
- · Suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster.
- · Suitable for situations in which low emission smoke and acid gas is required in case of burning.
- · Length in metres: 100
- · No. of cores: 3
- · Product Packaging: Reel
- · Low Smoke Zero Halogen
- · Standard: BS7211
Technical Specifications
Power cable < 1 kV, for fixed installations |
|
| Nominal voltage U | 500 V |
|---|---|
| Low temperature resistant according to EN 60811-504+505+506 | No |
| Oil resistant according to IEC 60811-404 | No |
| Screen | No |
| Drain wire | Yes |
| Permitted cable outer temperature during assembling/handling | 0 – 60 °C |
| Max. conductor temperature | 70 °C |
| Nominal voltage U0 | 300 V |
| Number of cores | 3 |
| Nominal cross sectional area of conductor | 1 mm² |
| Conductor surface | Bare |
|---|---|
| Sheath colour | Grey |
| Sheath material | Polyvinyl chloride (PVC) |
| Core insulation material | Polyvinyl chloride (PVC) |
| Core colour | Several |
| Protective barrier | None |
| Core identification | Colour |
| Conductor category | Class 1 = solid |
| Conductor material | Copper |
