6243BH 1.5mm² White Basec Cable 3-Core&Earth

£1.31

Part  number: 2500143733   MPN: 20145192   Product Type:  3 Core & Earth (6243)



Categories: , ,

Description

Part  number: 2500143733   MPN: 20145192   Product Type:  3 Core & Earth (6243)

Product Details

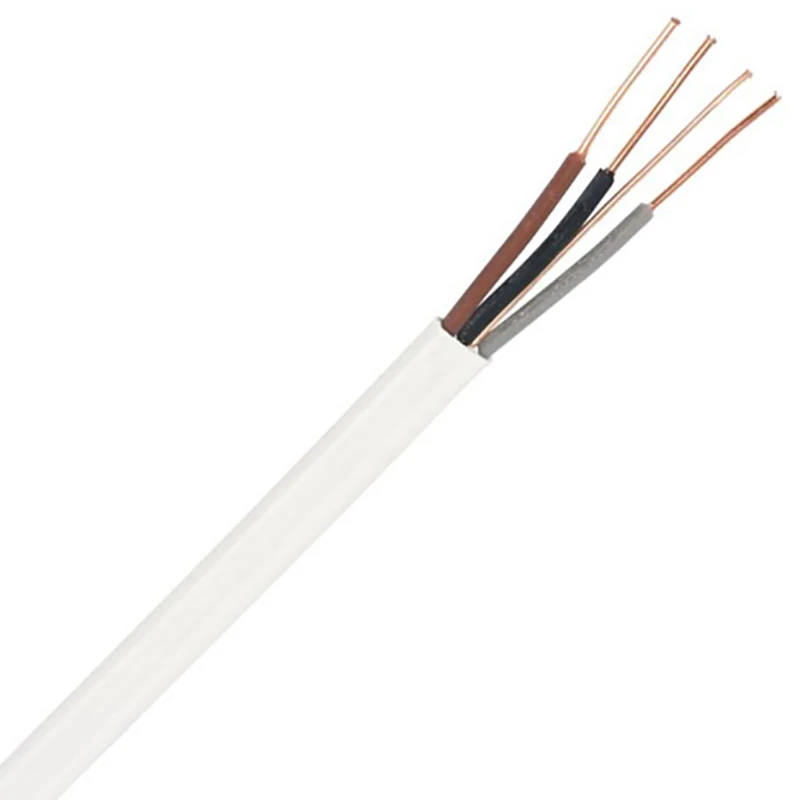

Prysmian 6243B is a flat triple core Low Smoke, Zero Halogen (LSOH®) cable designed for installation as clipped direct, on tray or in basket and also buried within plaster or embedded in walls. Three cores with bare CPC

  • · Suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster.
  • · Suitable for situations in which low emission smoke and acid gas is required in case of burning.
  • · Length in metres: 100
  • · No. of cores: 3
  • · Product Packaging: Reel
  • · Low Smoke Zero Halogen
  • · Standard: BS7211

Technical Specifications

Power cable < 1 kV, for fixed installations
Nominal cross sectional area of conductor 1.5 mm²
Low temperature resistant according to EN 60811-504+505+506 No
Oil resistant according to IEC 60811-404 No
Screen No
Drain wire Yes
Permitted cable outer temperature during assembling/handling 0 – 80 °C
Max. conductor temperature 90 °C
Nominal voltage U0 300 V
Number of cores 3
Nominal voltage U 500 V



Core insulation material Polyolefin
Sheath colour White
Core identification Colour
Protective barrier None
Core colour Several
Conductor category Class 1 = solid
Conductor material Copper
Conductor surface Bare
Sheath material Polyolefin
