Single Conductor Insulatedmarkable Cable Endmedium 2.5mm² Grey

£0.42 per item

Part Number: 2500026772   MPN: DZ5CA025   Product Type: Insulated Crimps

Total Other (item)
Product Price
Categories: , ,

Additional information

Weight 0.25 kg
Brands

Product Details

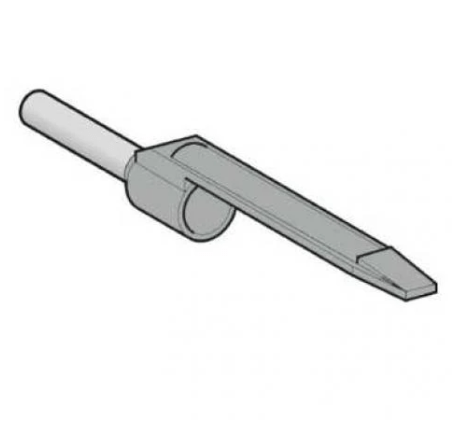

Linergy cable end insulated markable with integrated marker tag holder. It applied to single conductor with 2.5 mm² cable cross section. It has grey surface treatment. It is medium size with integrated marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).

  • Linergy cable end insulated markable with integrated marker tag holder.
  • It applied to single conductor with 2.5 mm² cable cross section.
  • Material: Halogen-Free Plastic
  • Weight: 0.25kg
  • It has grey surface treatment.
  • Min Cable Size: 2.5mm²

Technical Specifications

Cable end sleeve

Material Copper
Construction type Standard
Surface protection Tinned
Colour Grey
Sleeve length 8 mm
Nominal cross section 2.5 mm²
Insulated Yes
Halogen free No
For cables resistant to short circuit No
Reel packaging No
With identification flag Yes

Technical Documents

Technical Data Sheet

Manual
